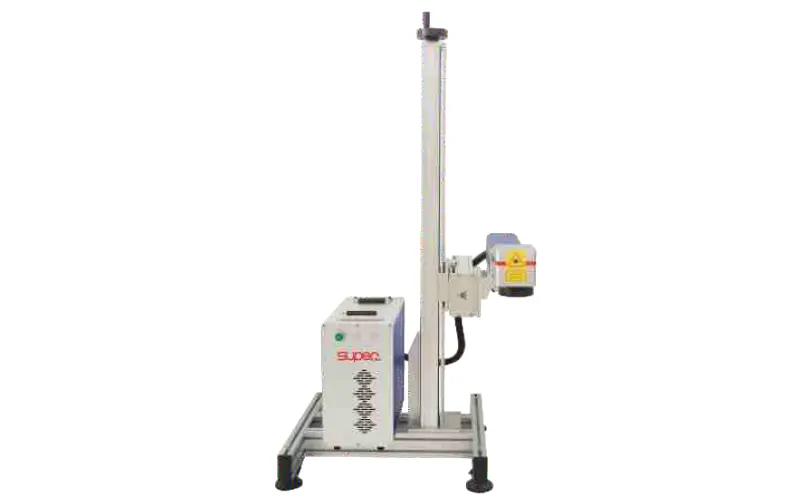

5w Fly Uv Laser Marking Machine
5w
Fly Uv Laser Marking Machine

The 5W Fly UV Laser Marking Machine is engineered for high-speed, continuous marking on moving production lines. Utilizing a 355nm ultraviolet laser, it delivers precise, permanent markings on a variety of materials, including plastics, glass, ceramics, and coated metals.

The machine’s “cold marking” process ensures minimal thermal impact, preserving the integrity of heat-sensitive materials. With marking speeds up to 12,000 mm/s, it supports the efficient operation of industries such as electronics, pharmaceuticals, and packaging.

Technical Parameter
Model 5w
Laser Type UV Laser (Ultraviolet)
Laser Power 5w
Laser Wavelength 355 nm
Marking Area 100mm × 100mm / 150mm × 150mm / 200mm × 200mm (optional)
Marking Speed ≤ 9000 mm/s (material & application dependent)
Marking Deptd ≤ 0.02 mm (depending on material)
Minimum Line Width 0.01mm
Minimum Character Size 0.2mm
Repeat Positioning Accuracy ±0.002 mm
Laser Lifespan 20,000 – 30,000 hours
Input Power AC 220V / 50Hz or 110V / 60Hz
Power Consumption <800W
Operating Environment Temperature 15°C – 30°C
Humidity 5% – 75%, non-condensing
Machine Dimensions Approx. 800mm × 500mm × 1400mm
Net Weight 60–80 kg (approx.)
