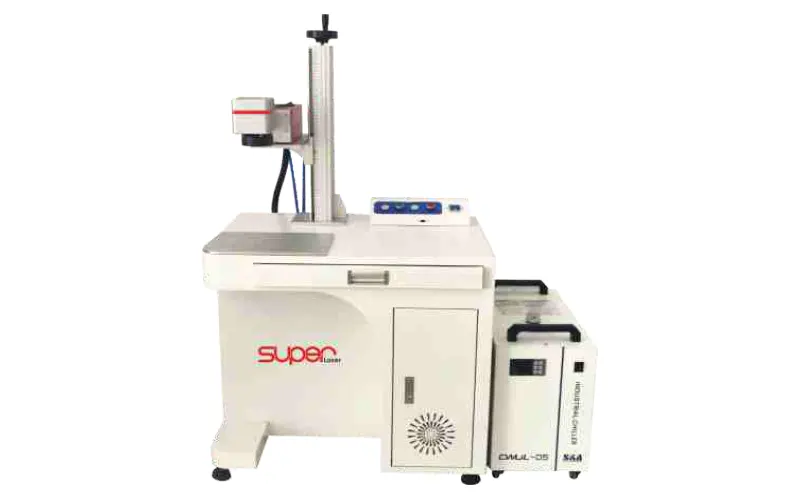

The 15W UV Laser Marking Machine is engineered for high-speed, ultra-precise marking on a wide range of materials, including plastics, glass, ceramics, and metals.
Utilizing a 355nm ultraviolet laser, it offers a minimal heat-affected zone, ensuring clean, burr-free markings without damaging sensitive materials.
This makes it ideal for industries requiring fine detail and minimal thermal impact, such as electronics, medical devices, and automotive component.
| Model | 15w |
|---|---|
| Laser Power | 15W UV (Ultraviolet) Laser |
| Laser Wavelength | 355 nm |
| Marking Area | 100mm × 100mm / 150mm × 150mm / 200mm × 200mm (optional) |
| Marking Speed | ≤ 10000 mm/s (material-dependent) |
| Marking Deptd | ≤ 0.05mm (material dependent) |
| Minimum Line Width | 0.01mm |
| Minimum Character Size | 0.1mm |
| Repetition Accuracy | ±0.002mm |
| Cooling System | Air Cooling |
| Supported File Formats | PLT, DXF, BMP, JPG, PNG, AI, TTF, SHX, etc. |
| Control Software | EZCAD |
| Laser Source Lifespan | 20,000 – 30,000 hours |
| Input Power Supply | AC 220V ±10%, 50Hz / 60Hz |
| Power Consumption | <1200W |
| Operating Environment Temperature | 15°C – 30°C |
| Humidity | 5% – 75%, non-condensing |
| Machine Dimensions | Approx. 800mm × 600mm × 1400mm |
| Net Weight | 100 – 120 kg (approx.) |
